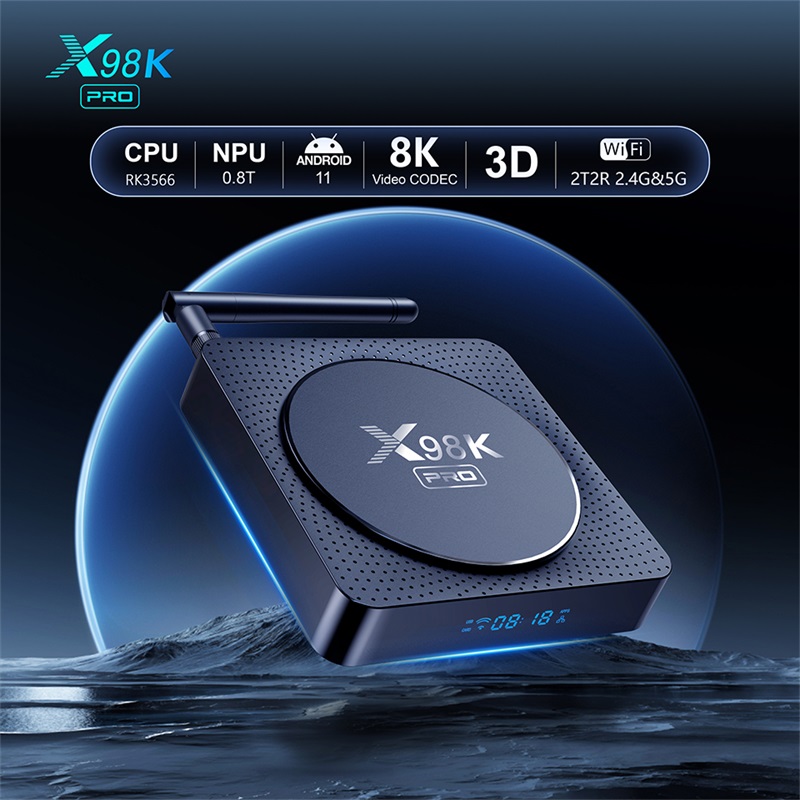

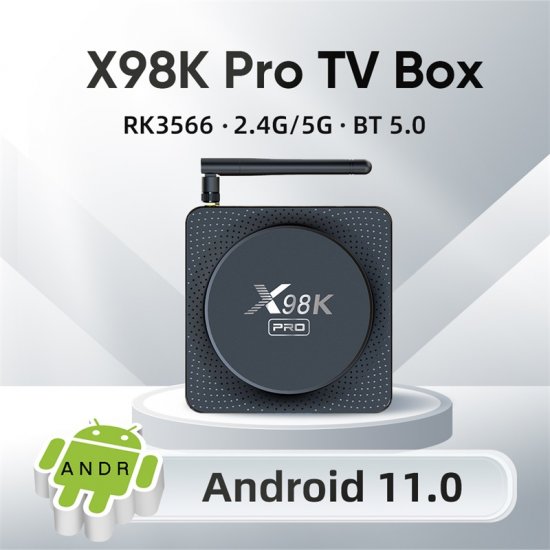

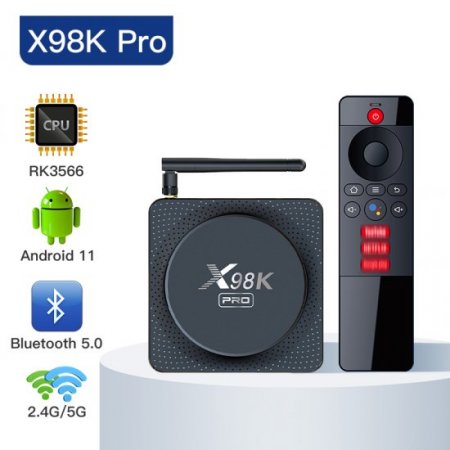

| Product Model | X98K PRO | Project Status | M.P |
| A-media ID/Mainboard model |
|
| Basic parameters |
| CPU | Chipset | RK3566 |
| Architecture | Quad Core ARM Cortex A55 |
| GPU | Chipset | Mali-G52 1-Core-2EE |
| Architecture | OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1 support |
| NPU |
| Neural network acceleration engine with processing performance up to 0.8 TOPS |
| RAM | Capacity | 4GB (2/4GB Optional) |
| ROM | Capacity | 32GB (16/32/64GB Optional) |
| External storage | USB Storage Devices | Supported |
| Micro SD card | Supported |
| Software |
| Operating system | OS Version | Android 11 |
| Language | Multi-Language |
| Multimedia | Video | Video Decoder |
| H.265 HEVC/MVC Main10 Profile [email protected] up to 4096x2304@60fps |
| H.264 AVC/MVC Main10 Profile yuv400/yuv420/yuv422/@L5.1 up to 4096x2304@60fps |
| VP9 Profile0/2 [email protected] up to 4096x2304@60fps |
| VP8 verision2,up to 1920x1088@60fps |
| VC1 Simple Profile@low, medium, high levels, Main Profile@low, medium, high levels, Advanced Profile@level0~3,up to 1920x1088@60fps |
| MPEG-4 Simple Profile@L0~6,Advanced Simple Profile@L0~5,up to 1920x1088@60fps |
| MPEG-2 Main Profile, low, medium and high levels, up to 1920x1088@60fps |
| MPEG-1 Main Profile, low, medium and high levels, up to 1920x1088@60fps |
| H.263 Profile0,levels 10-70,up to 720x576@60fps |
| * Video Encoder |
| H.264/AVC BP/MP/[email protected]，up to 1920x1080@100fps |
| H.265/HEVC [email protected], up to 1920x1080@100fps (4096x4096@10fps with TILE) |
| Support YUV/RGB video source with rotation and mirror |
| Audio | Supports MP3, AAC, WMA, FLAC, Ogg. |
| Image | HD JPEG、BMP、GIF、PNG、TIF |
| Network service |

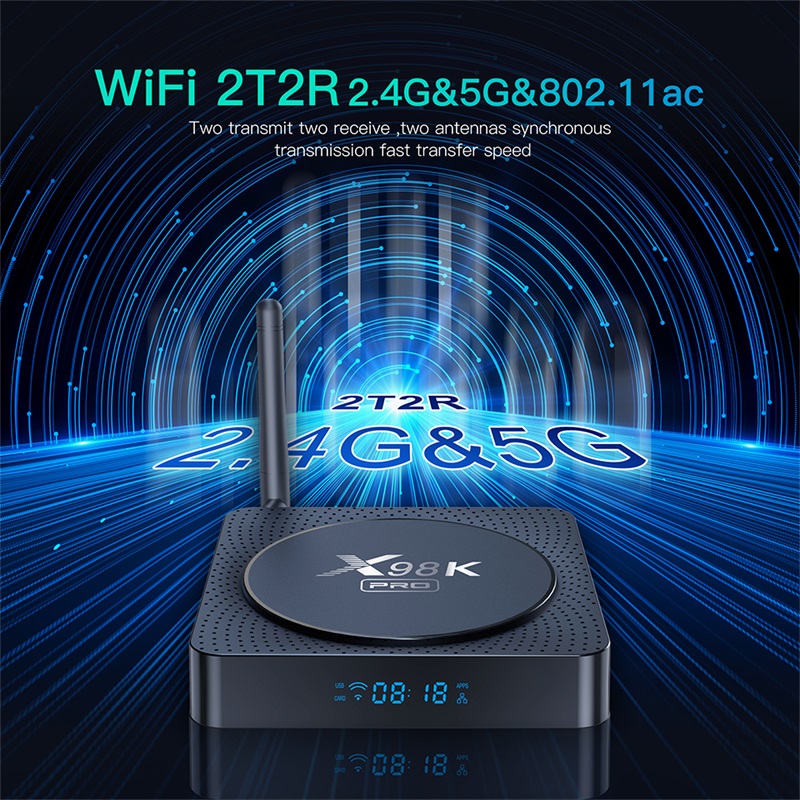

| Wi-Fi | Type | Support WiFi IEEE 802.11 b / g / n / ac |
| Frequency | Support 2.4G and 5G |
| Antenna Type | Two external antennas |
| Bluetooth | Bluetooth | Support BT5.0 |
| Interface |
| Charge | DC connector | DC IN(5V/2A) |
| Display output | HDMI | 4K*2K UHD Output, Support HDMI 1.4/2.0 |
| IR Reciver | 3.5mm Earphone jack | Remote Reciver Connect |
| Micro SD | External memory | Support |
| USB port | USB host | 1* USB3.0 2* USB2.0 normal type |
| Ethernet | Ethernet | 1000M Ethernet |
| Appearance |
| Body Material | ABS Plastic |
| Color | Black |
| Size | 106*106*20(mm) |
| Weight | 0.152KG |
| Cerifications(For Unit) |
| Standard | CE | / |
| RoHS | / |
| Others | Optional | / |
| Package contents |
| Shipping Info |
|
| User manual | *1 | Gift Box Dimension(mm) | 205*140*50(mm) |
| Gift Box | *1 | Carton Size(mm) | 420*270*305 (mm） |

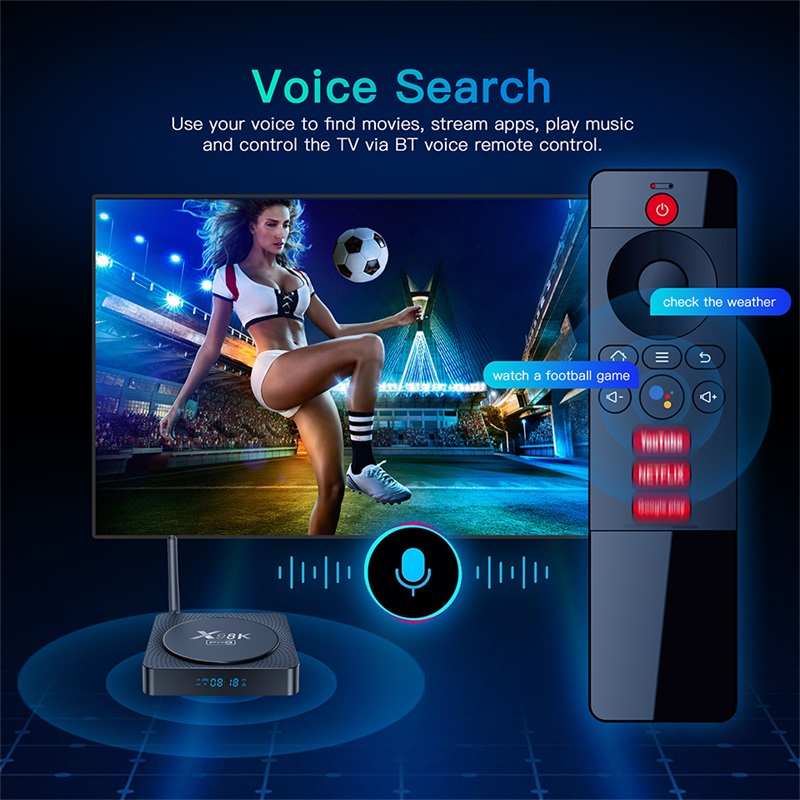

| Remote control | *1 | Qty Per Carton(pcs) | 20 |
| HDMI external cable | *1 | Gift Box.G.W(gs) | 0.406Kg |
| Power adapter | *1 | Export carton (G.W.)(kgs) | 8.2Kg |
